Thông tin chi tiết sản phẩm:
|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Power Source: | Electric |
| Warranty: | 1 Year | Machinery Test Report: | Not Available |
| Video outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
| Warranty of core components: | 1 Year | Core Components: | Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other |
| Weight (KG): | 6500 kg | Product name: | Hydraulic Articulating Boom Lift Aerial Work Platform |
| Control Method: | Pendant +Remote(Customized) | Lifting height: | 6m-30m(max 100m) |
| Power supply: | 220V/380V 50HZ | MOQ: | 1 Set |
| Capacity: | 100kg -1500kg | After Warranty Service: | Onlinesupport |
| Operating mode: | Hydraulic Control | Drive type: | Rear Wheel Drive |
| Làm nổi bật: | 30m nâng Telescopic Boom Lifts,Thang máy nâng kính thiên văn 6m,Động cơ nâng cánh cụt thủy lực |
||
|

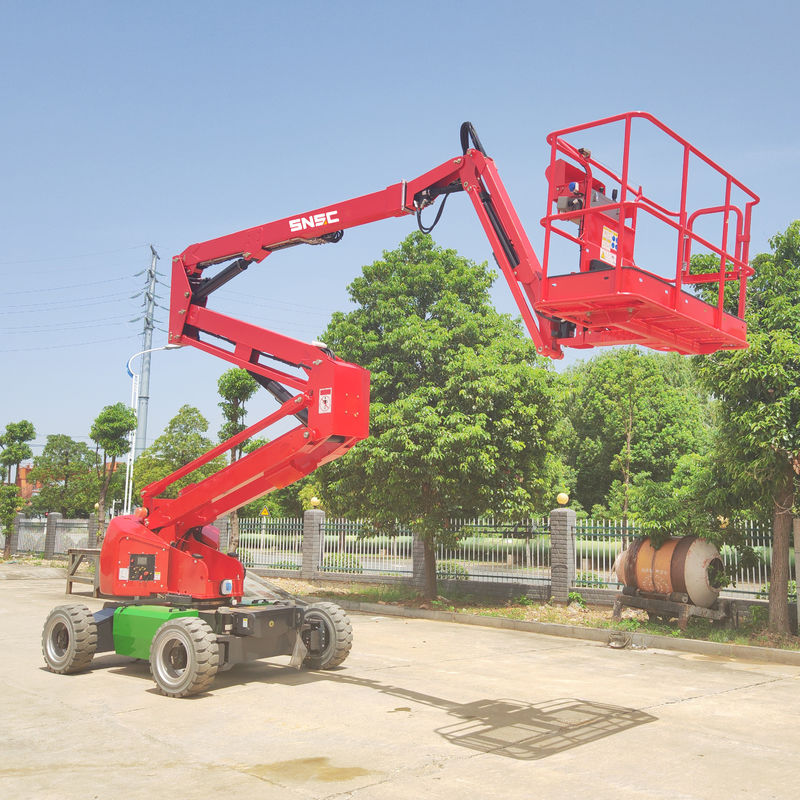

SNSC Sản phẩm mới tự động nối boom Lift nền tảng
|
|
|
|
Loại điện
|
Pin
|
|
|
Chiều cao bệ cao nhất
|
10m/12.4m/14m/15.8m/18.1m/20m/24.2m/26m
|
|
|
Chiều cao làm việc tối đa
|
12m/14.4m/16m/17.8m/20.1m/22m/26.2m/28m
|
|
|
Tối đa tiếp cận theo chiều ngang
|
6.4m/7.4m/7.8m/9.55m/11.6m/12m/15.4m/17.6m
|
|
|
Tối đa độ rõ ràng lên&trên
|
4.78m/6.4m/7.7m/7.7m/8m/9.2m/10.2m/10.2m
|
|
|
Kích thước sàn
|
1.1*0.65m/1.53*0.76m/1.83*0.76m/2.44*0.91m
|
|
|
Khả năng nâng cao nhất
|
200kg ((10m), 230kg ((12.4-26m)
|
|
|
Người lao động
|
2
|
|
|
Chế độ Drive&Steer
|
4x2x2 ((12-16m) / 4x4x2 ((17.8-28m)
|
|
|
Trọng lượng
|
4800kg/6200kg/6800kg/8200kg/9000kg/9835kg/15000kg/17000kg
|
|
